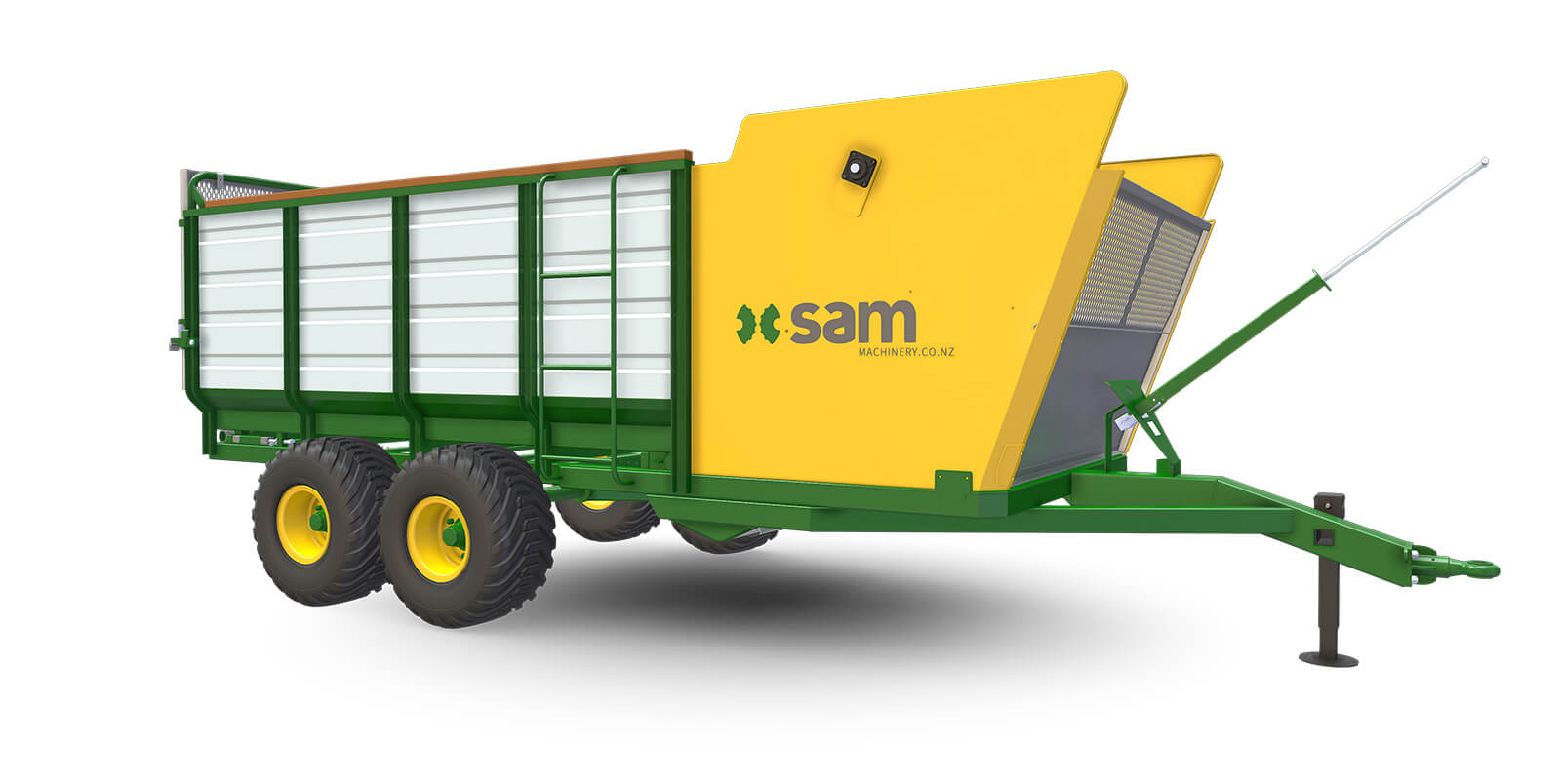

Centre-feed

10 Cube

10 Cube
Reliability plus.


SAM Feed Wagons are built tough for lasting performance year on year. Complexity is engineered out to ensure they are very reliable, and easy for your team to use and maintain.

Each machine provides an even flow of feed with excellent throw. They handle a large range of feed types including; green feed, maize, PK and silage.


6, 9, 10, 12, 15 cube models are available. All sizes come with either a low maintenance stainless chain side-feed or a simple centre-feed delivery system. Adding smart load weigh scales can also provide simple, accurate electronic weighing of feed quantities if you need it.


Like all Sam gear these wagons are backed by fast spare-parts and servicing.

Smart features

  • Stainless sides
    Stainless sides

    Stainless sides cut out rusting.

  • Superior paint finish
    Superior paint finish

    Shot blasted, primed and two-pot paint finish coated chassis. Gives superb corrosion resistance for the long-term.

  • Strong chain
    Strong chain

    High-tensile calibrated chains (13mm) are used throughout for strength.

  • Trans-tex deck flooring
    Trans-tex deck flooring

    Standard on all SAM Feed Wagons, Trans-Tex 22mm is a high-strength ply timber. Recognised for its high bending stiffness and high-impact resistance in the trucking industry.

  • Bluetooth 1 features002 Load cells FW 1
    Load weigh scales

    The Iconix FX15 display and load-cell system provides simple, accurate electronic weighing of feed quantities. They can be fitted retrospectively. An App for Bluetooth viewing is also available.

  • Long-life teaser bars
    Long-life teaser bars

    Individually welded teeth are designed for optimal grab and lift. Great for grass silage. They are more labour intensive to build, but last better for you.

Optional items

  • Load weigh scales
  • Remote axle greasing
  • LED Lights & flags
  • Tyre upgrade
  • Swivel coupling
  • Brakes
  • Skid
features002
Load weigh scales

Load weigh scales give an accurate measure of the weight of feed in the bin and can be zeroed at any time. A fixed Iconix FX15 display unit is supplied with all SAM machines fitted with weigh scales.

A simple calculation of the weight of feed spread, divided by the area covered, gives a very accurate spread rate (in kg/ha). An App for Bluetooth viewing is also available (currently Android only).

Remote greasing FW 1
Remote axle greasing

Remote axle-greasing saves you time and effort by giving you access to all axle greasing points. They are all raised together in a bank in an easy to reach location. A very effective way to improve machine maintenance, without having to jump under your machine. So keep that gear greased - no excuses!

LED Lights & flags

If you are using your machine on the road you will need a set of lights and flags. The flexi mounting boards are made from durable plastic, hardy for knocks and general wear and tear. Weatherproof lights are LED and plug directly into your power source.

Tyres 2
Tyre upgrade

We have tough high performing tyres to suit any application. They are chosen for their quality and durability.

We can change tyre sizes to suit your specific needs. The 6, 9 and 10 cubic metre wagons use 11.5 x 15.3 tyres but these can be upgraded to larger 400 x 15.5 tyres. The 400 x 15.5 tyres are standard on the 12 cubic metre wagons.

500 x 17 tyres are standard on all 15 cubic metre models. Larger tyres can be excellent if you have softer, wetter conditions.

Custom options are also available POA.

Swivel coupling S 2
Swivel coupling

Smaller feed wagons come standard with a fixed coupling. The 12-15 cube wagons come standard with a heavy-duty swivel coupling.

Swivel couplings can be added to smaller machines if required. They are great for varied terrain. If using a quick hitch, you will need a donut eye.

Brakes 1
Brakes

Brakes are available for tandem axle machines. They are usually located on the front hubs only. The brake system chosen had been well-proven over the years and is very reliable.

Skid 1
Skid

If you are using your machine with a quick hitch you will want to include a skid on the drawbar. There is no extra charge for this. Just let your dealer know when placing the order.

features002
Remote greasing FW 1
Tyres 2
Swivel coupling S 2
Brakes 1
Skid 1

Specifications

  • Axle type Tandem-axle 60
  • Axle capacity 8,000kg
  • Wheel type 11.5/80 x 15.3 12-ply
  • Overall length 6.5m
  • Overall width 2.56m
  • Internal bin width 2.0m
  • Internal bin height 1.24m
  • Capacity 10m3
  • Load weight (grass silage) 6T
  • Load height 2.02m

Fast central support service

Our SAM range is backed by a quick and efficient support service from central Hamilton. The team are also available for technical help should you need it.

Our guarantee

We deliver quality products and stand by them. All Feed Wagons go through rigorous quality and accuracy testing. They also have a comprehensive warranty.
